Tutorials: Tool Widget: HTTP Request

The HTTP Request widget goes under the tools category in missio™ Canvas.

Introduction

Required access: Voxtelesys Portal

The HTTP Request is a very powerful widget and once you master it you will be pulling and pushing data to your database's to help automate transactions!

This widget allows the designer to interact with external web applications. For JSON response payloads, the data is parsed and accessible via call variables in subsequent widgets. The parsed variables are accessible via the >widget_name<.parsed variable prefix. For example, if the response JSON is {“make”:”volkswagen”,”model”:”jetta”,”year”:”2000”} then to access the JSON year field the designer would use .parsed.year.

*Disclaimer: You will need to have Voice API enabled on your account to do this you will need to open a ticket with support.

Last Updated: 8/21/2026

Add the Widget

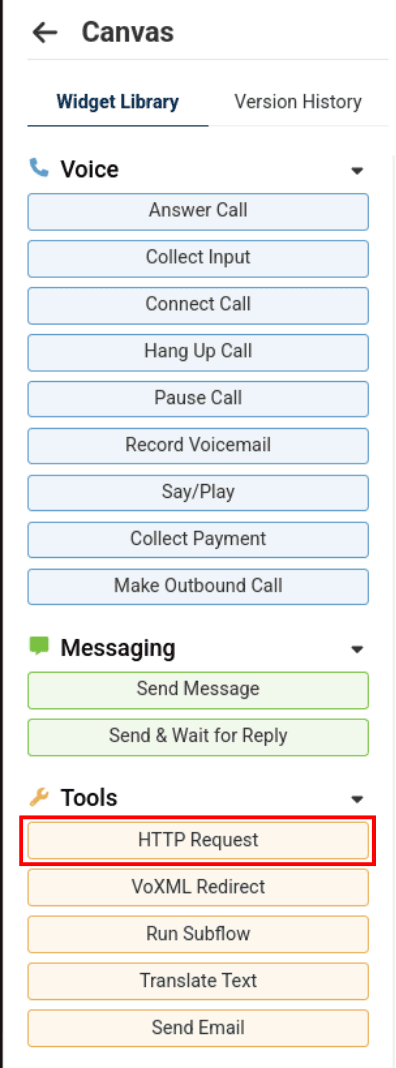

To use the widget simply click and drag it into the canvas.

Name the Widget (Optional)

Note that naming the widget can help identify it with other tools later on. It is case sensitive, does not accept spaces or dashes

Configure the Widget

HTTP request widget settings

The HTTP Request widget has the following configuration abilities.

URL

The URL to send the HTTP/HTTPS request to. Supports liquid formatting

Content Type

Application/JSON

POST Method Support Only

Application/XML

POST Method Support Only

Application/x-www-form-urlencoded

POST and GET Method Support

Method

The from number is the number you want the SMS message sent from, make sure this number is SMS enabled and has a valid TCR Campaign associated with it.

Request Body

The body of the HTTP request. It can be used when testing to make sure you are sending the correct information to the URL. Supports liquid formatting.

Conditions

Conditions can be used to further control what happens after the data is dipped.

Connect the Widget

Now, you will want to connect the HTTP Request widget.

connect the HTTP request widget to other widgets

Adding the HTTP Request widget is completed!

To continue the flow, connect more widgets to the opposite end of the HTTP Request widget:

Connect More Widgets

Now connect more widgets!

For step-by-step guidance on configuring widgets across Voice, Messaging, RCS, Capture, Controls, and Tools, check out our Widget Tutorials
