Tutorials: Cisco 19x ATA to Voxtelesys

This tutorial provides a straightforward walk through for setting up a Cisco 19x ATA, ensuring users can successfully configure their device to Voxtelesys.

Required access: Voxtelesys Portal, Cisco Web Interface


Estimated time to complete tutorial: 10 minutes


*Disclaimer: Your Cisco device generally needs some configuration before you can access the web interface.


Last Updated: 5/14/2025

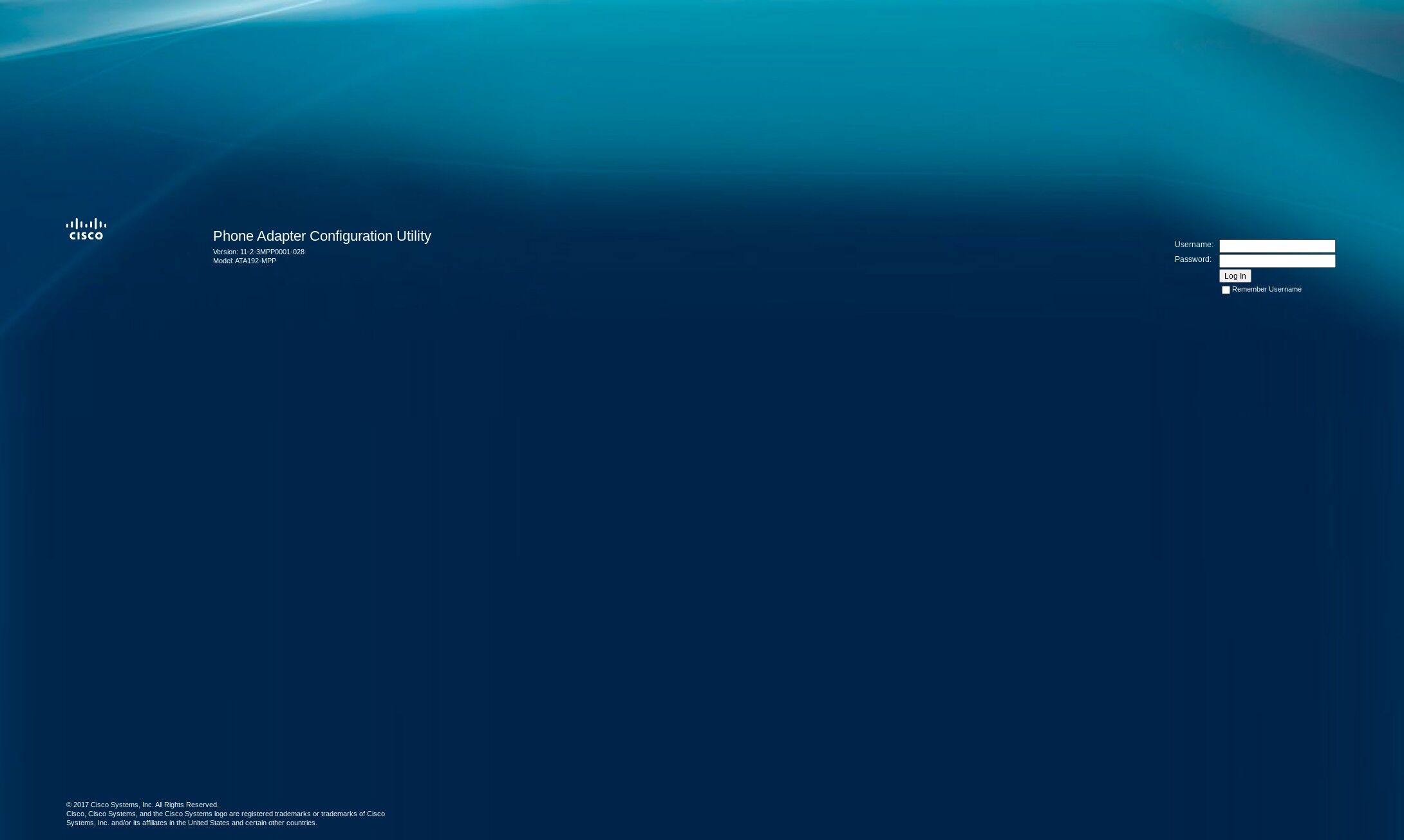

Cisco web interface

Navigate to the web interface for your Cisco Device.


If you do not know the IP address, you can do a network scan or plug in an analog phone. If you use an analog phone, dial ****, then wait for the IVR menu to play. When the IVR menu plays dial 110#.

Now type the IP address into your web browser. Example: 192.168.1.100

cisco sign in

Sign in to device using "admin" for the username and password you set.

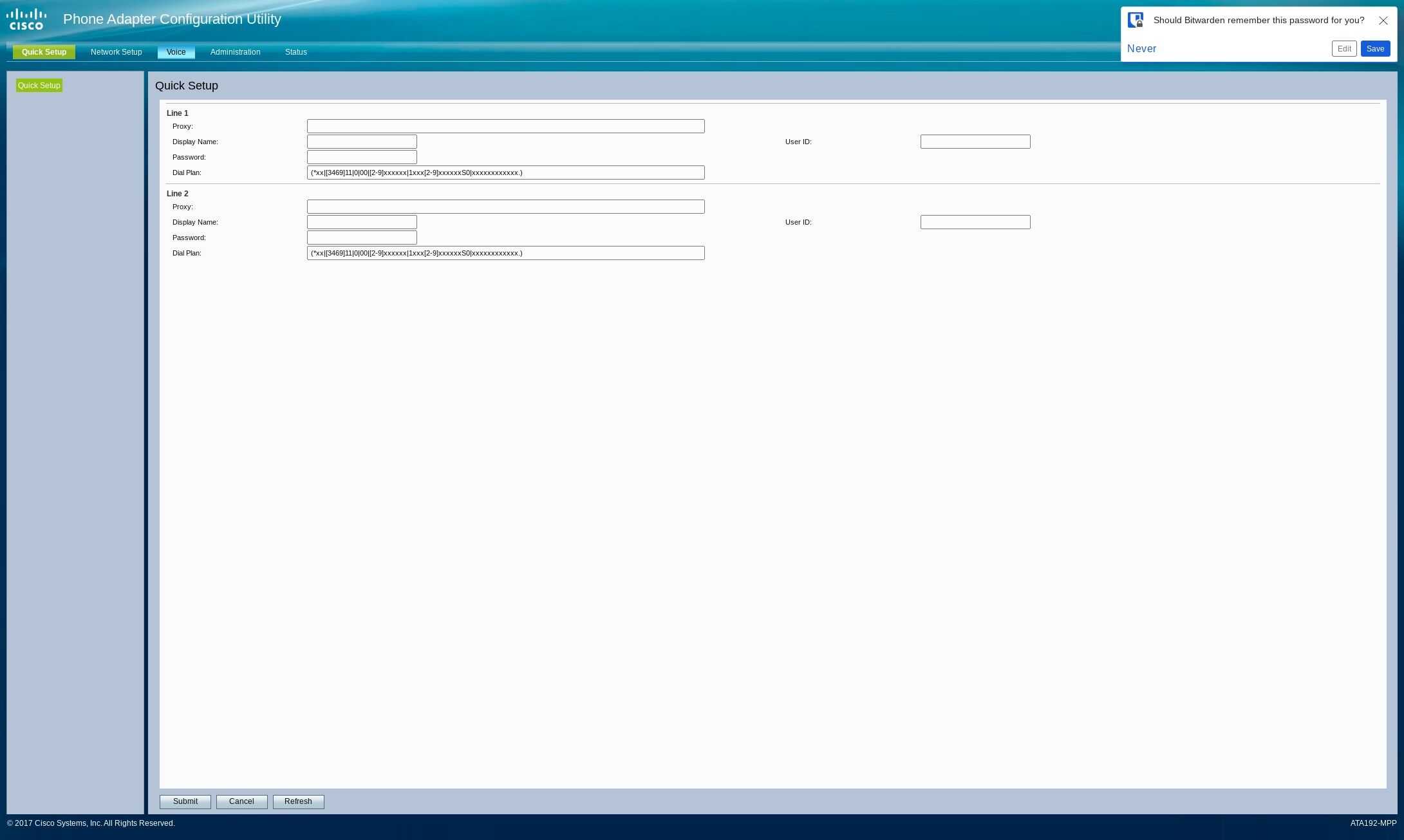

voice button

Click "Voice."

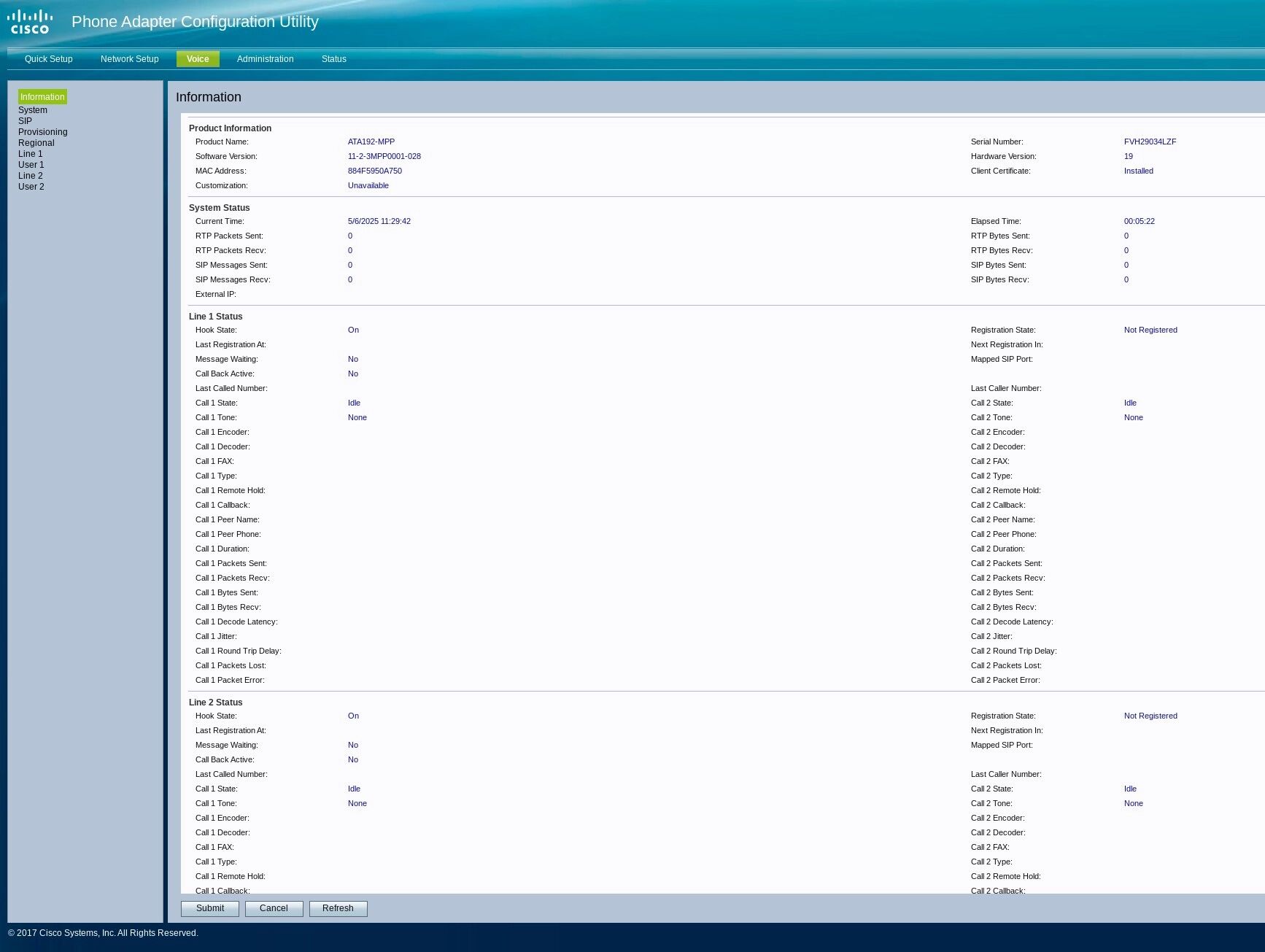

line 1 in sidebar

Click "Line 1."

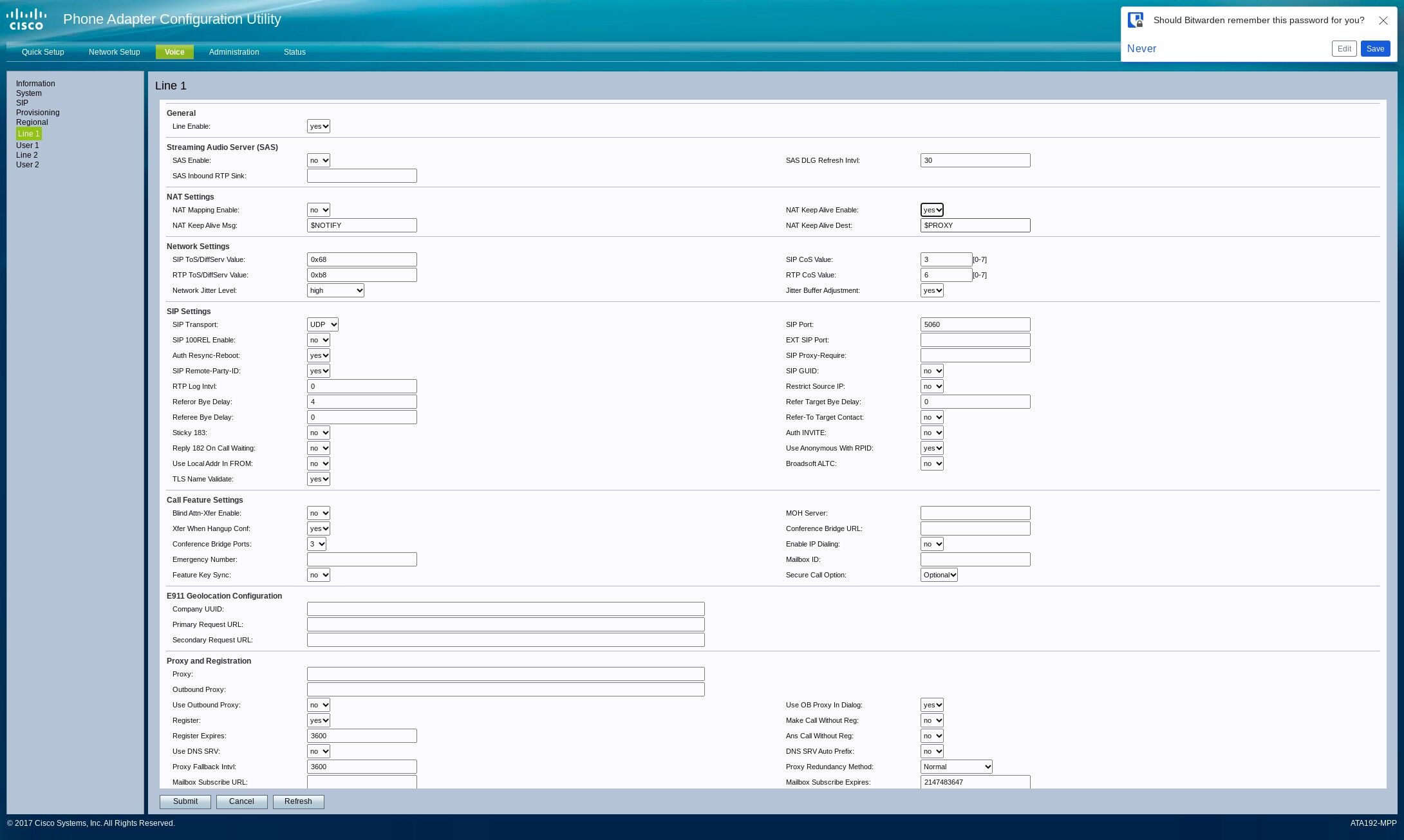

nat keep alive enable drop down

Under Nat Settings. For "NAT Keep Alive Enable" change to "yes."

Navigate to the Voxtelesys Portal

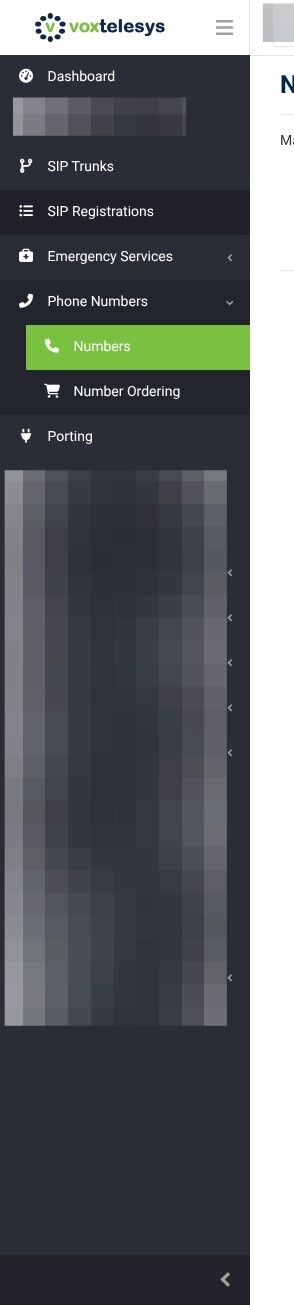

sip registration in the voxtelesys portal sidebar

Click "SIP Registrations."

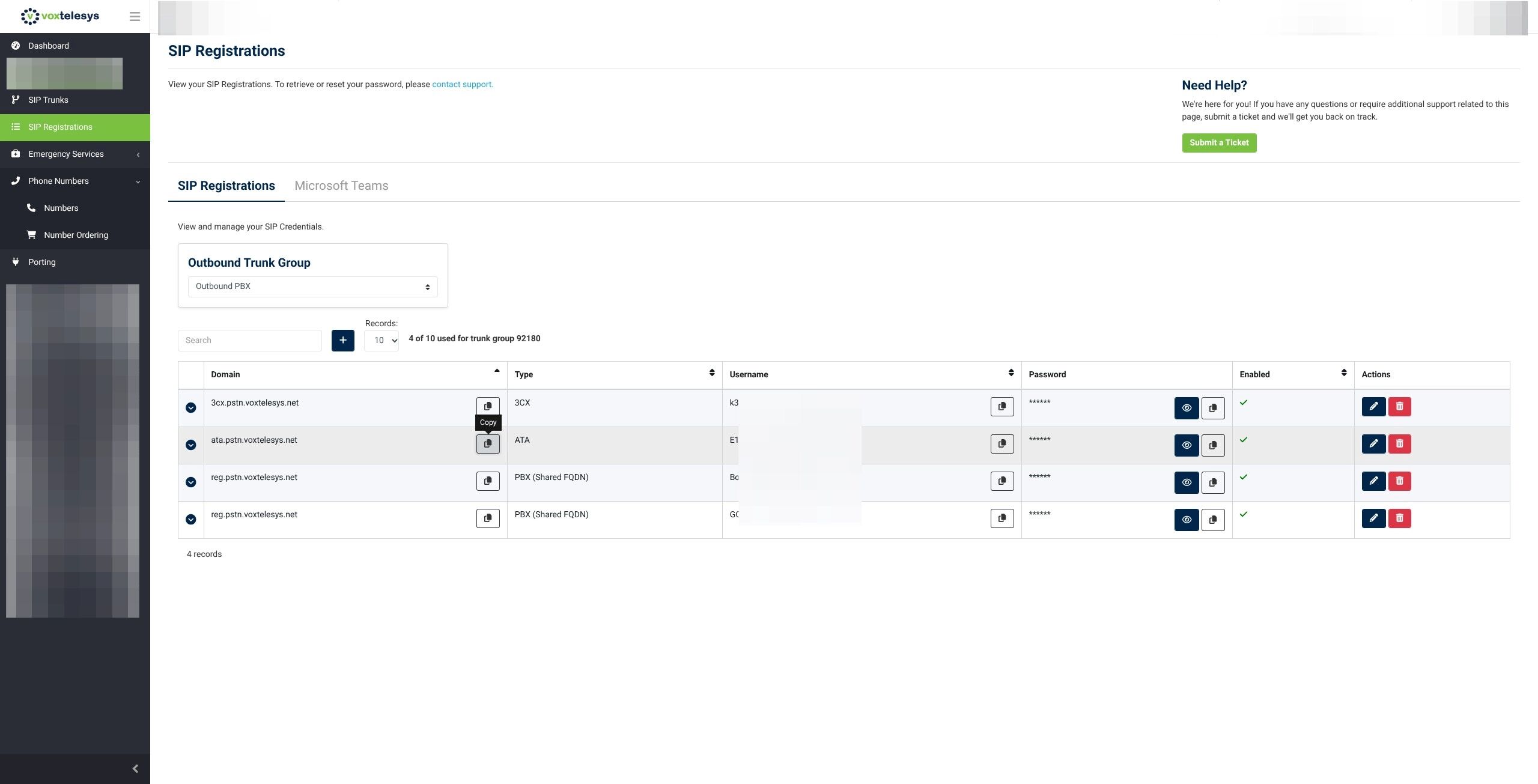

location to copy SIP domain

Copy your SIP domain for the ATA device.


If you don't have one you can create by following our guide Creating a Registration.

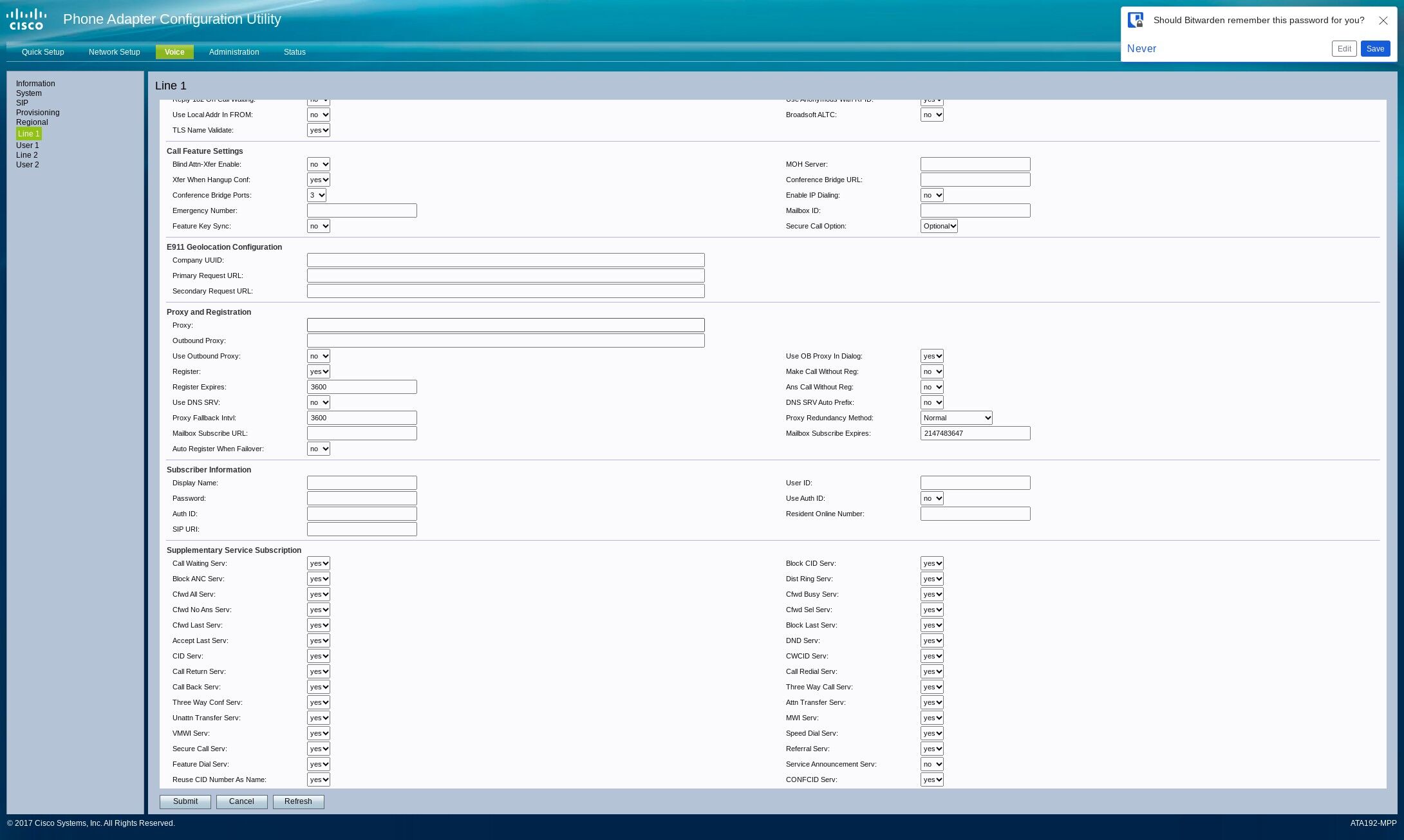

proxy and Registration in the cisco web interface

Switch to your Cisco Web Interface.


Under Proxy and Registration. Copy the SIP domain to "Proxy."

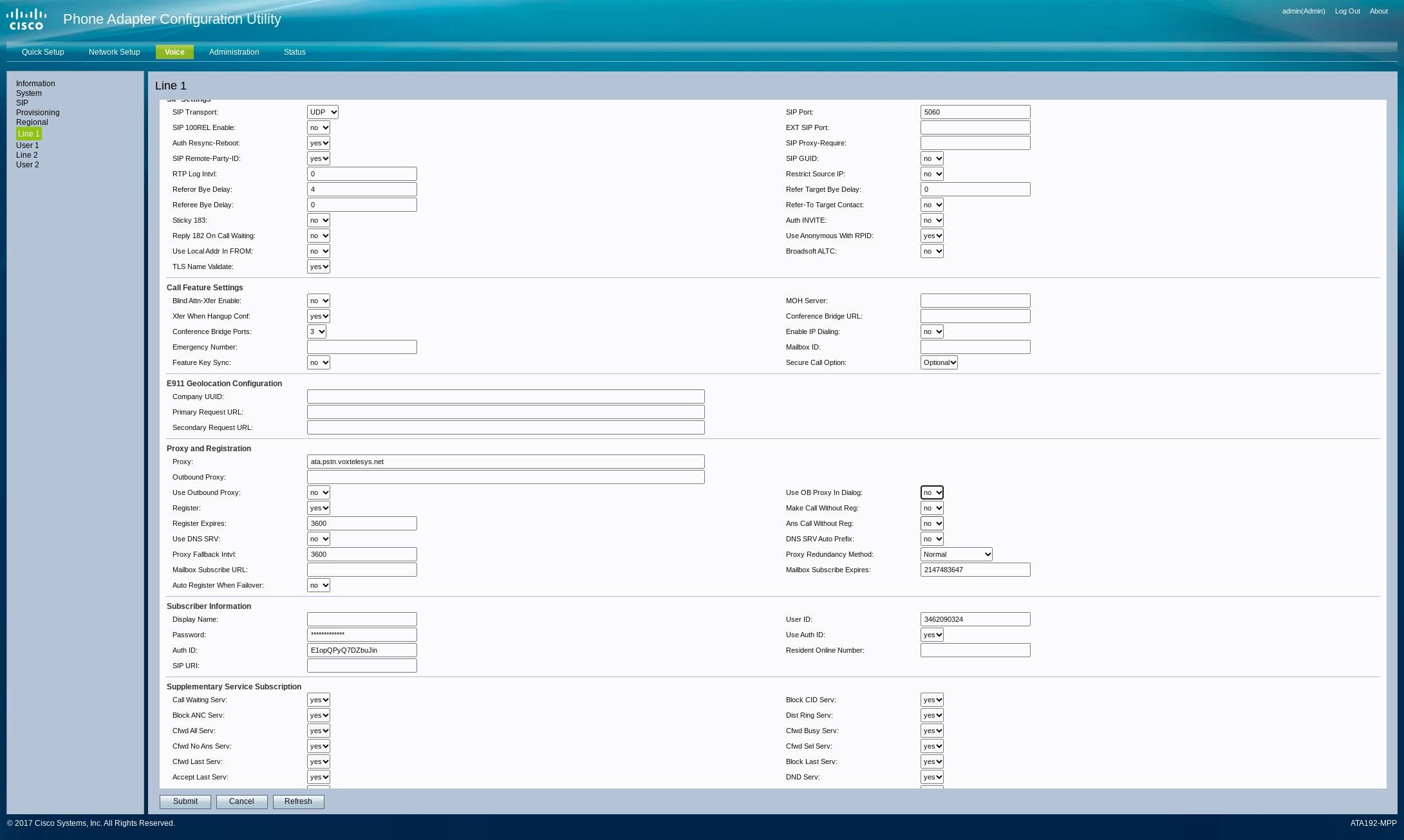

use ob proxy in dialog dropdown

Change "Use OB Proxy in Dialog" to "no."

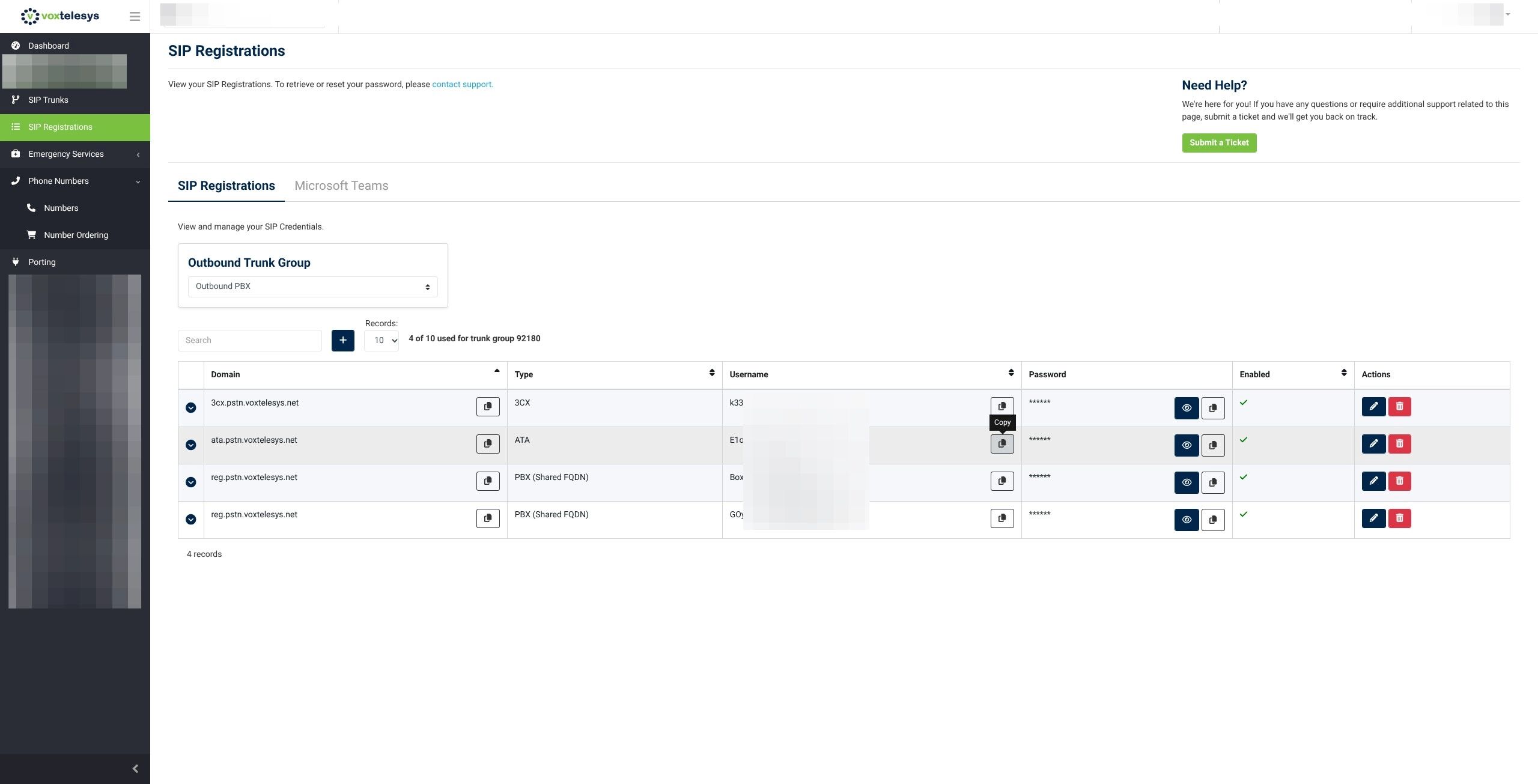

voxtelesys portal ocation to copy username

Navigate back to the Portal and Copy your Username.

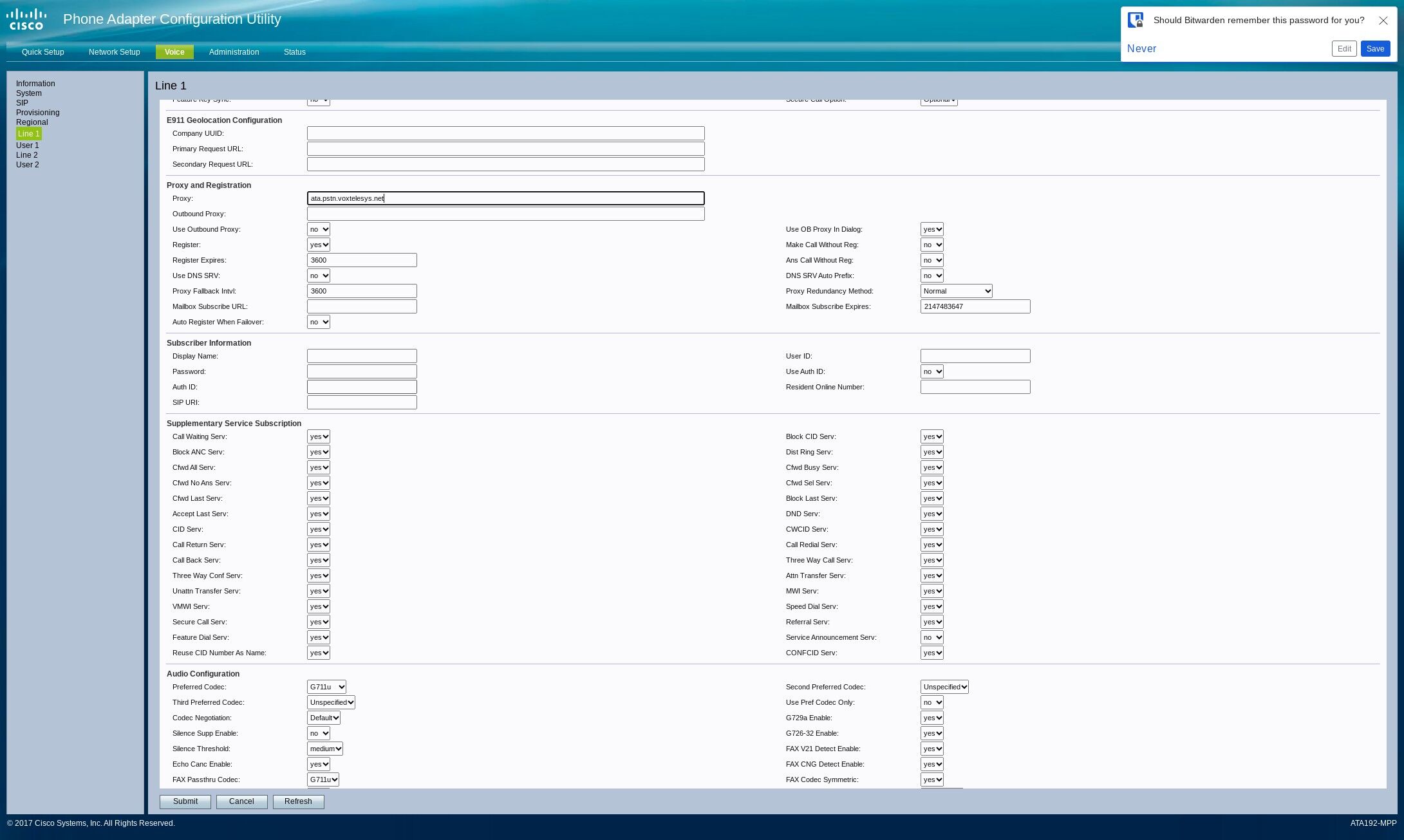

auth id field in cisco web interface

Switch to your Cisco Web Interface.


Under Subscriber Information. Paste your username in the "Auth ID" Field.

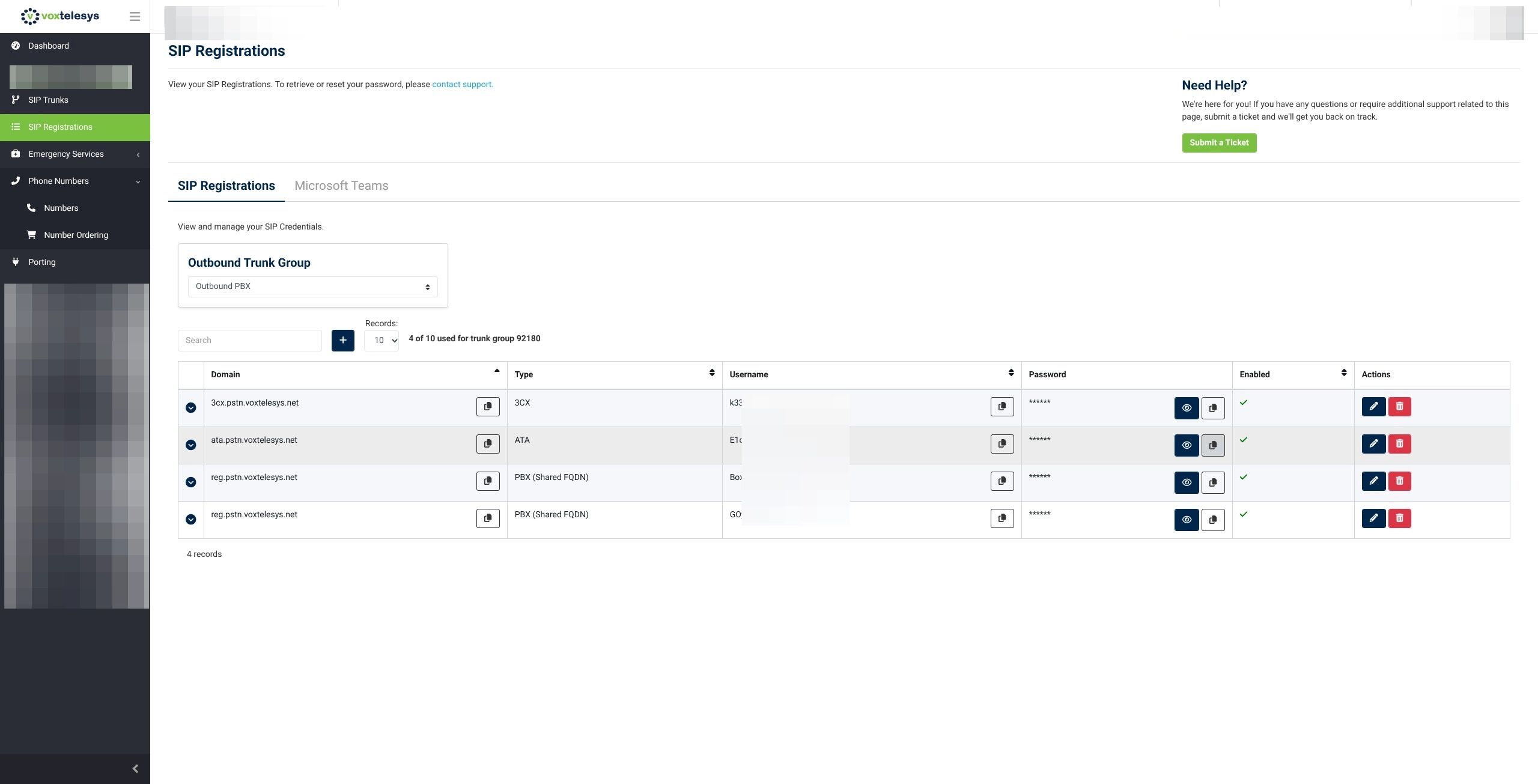

loctation in portal to copy password

Navigate back to the Portal and copy your password.

password field in the cisco web interface

Switch to your Cisco Web Interface.


Paste your password in the "Password" field.

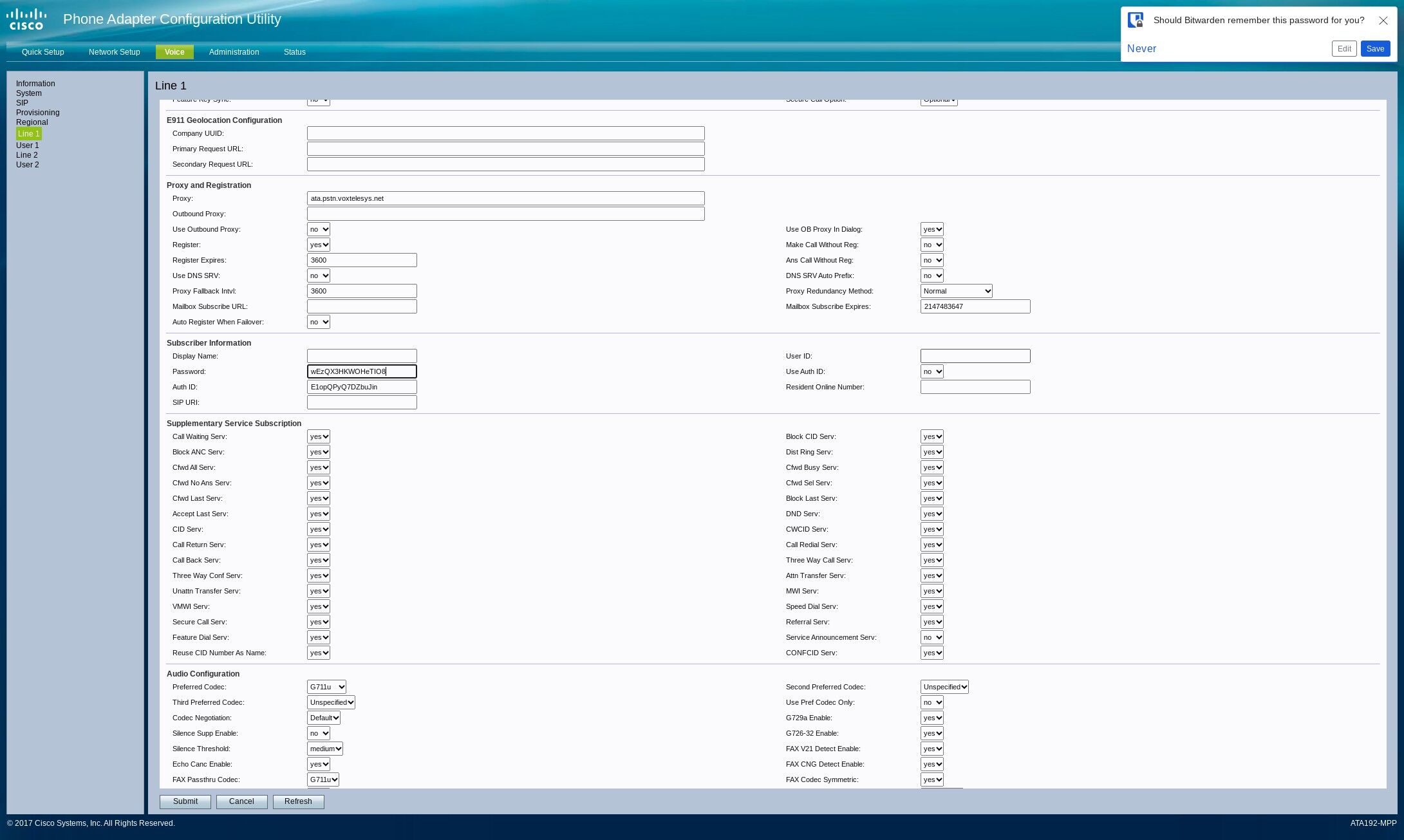

user id field in the cisco web interface

Enter the DID you are going to use in the "User ID" field.

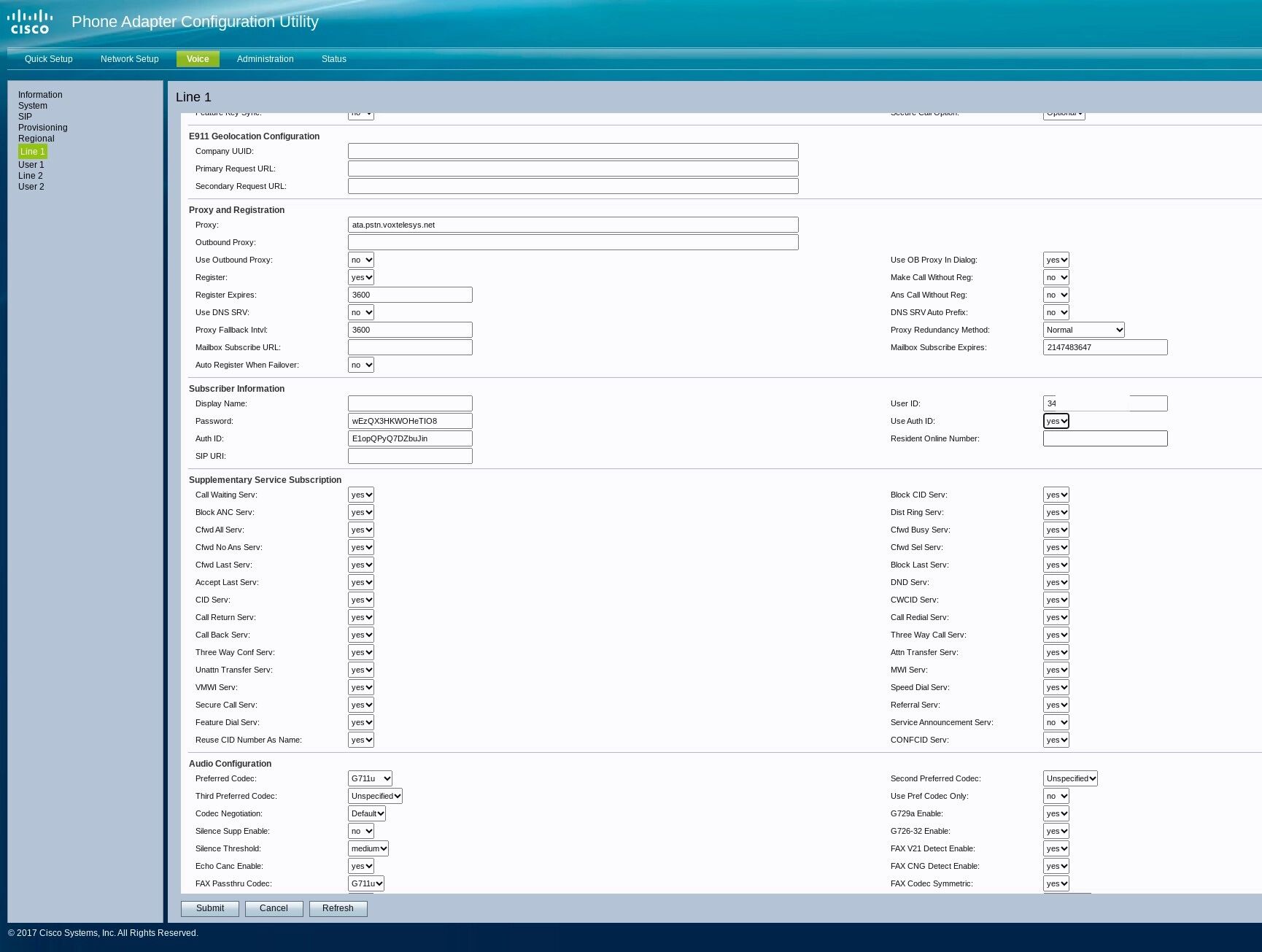

use auth id field in the cisco web interface

Change "Use Auth ID:" to "yes."

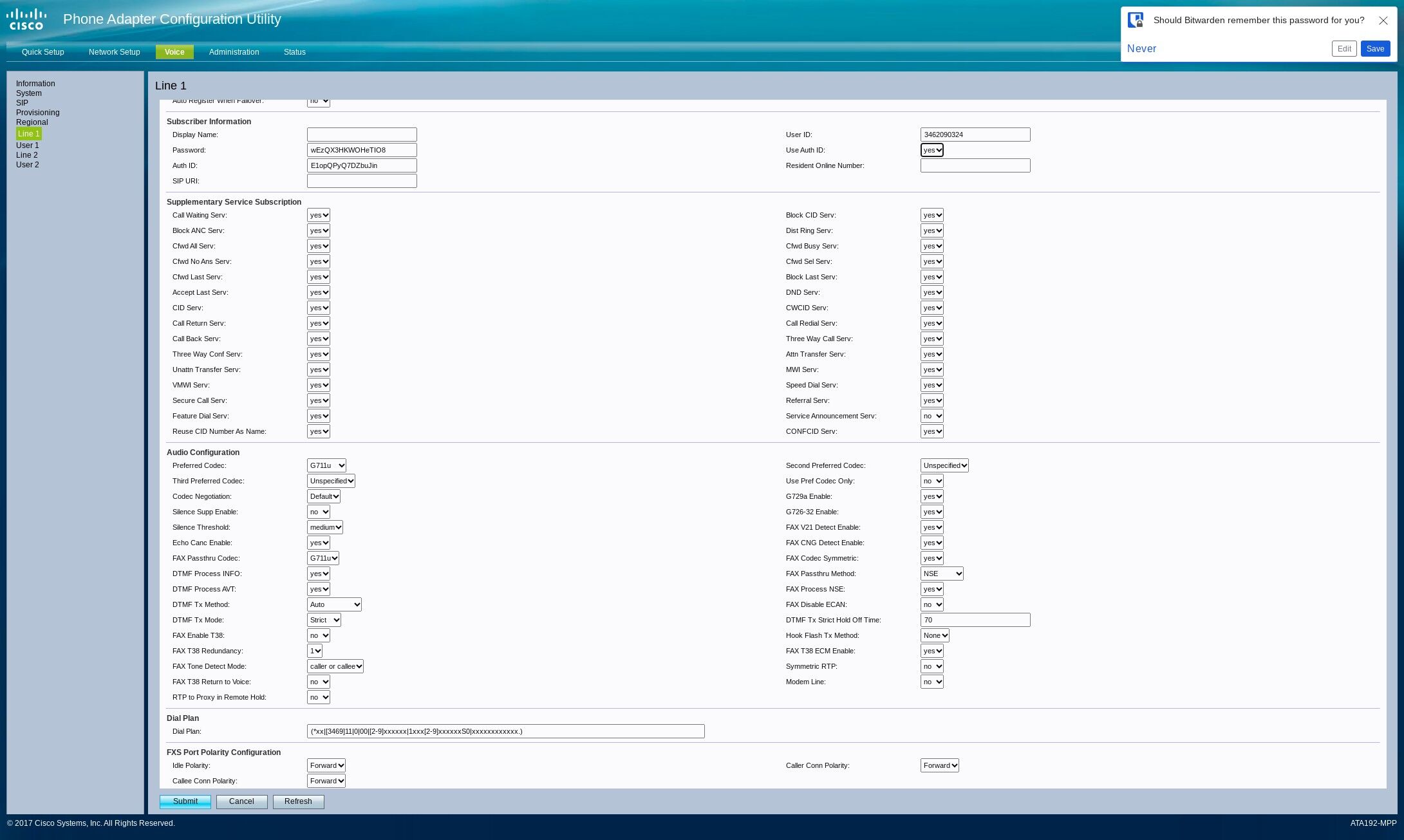

submit button

Scroll to the bottom of the page and click "Submit."

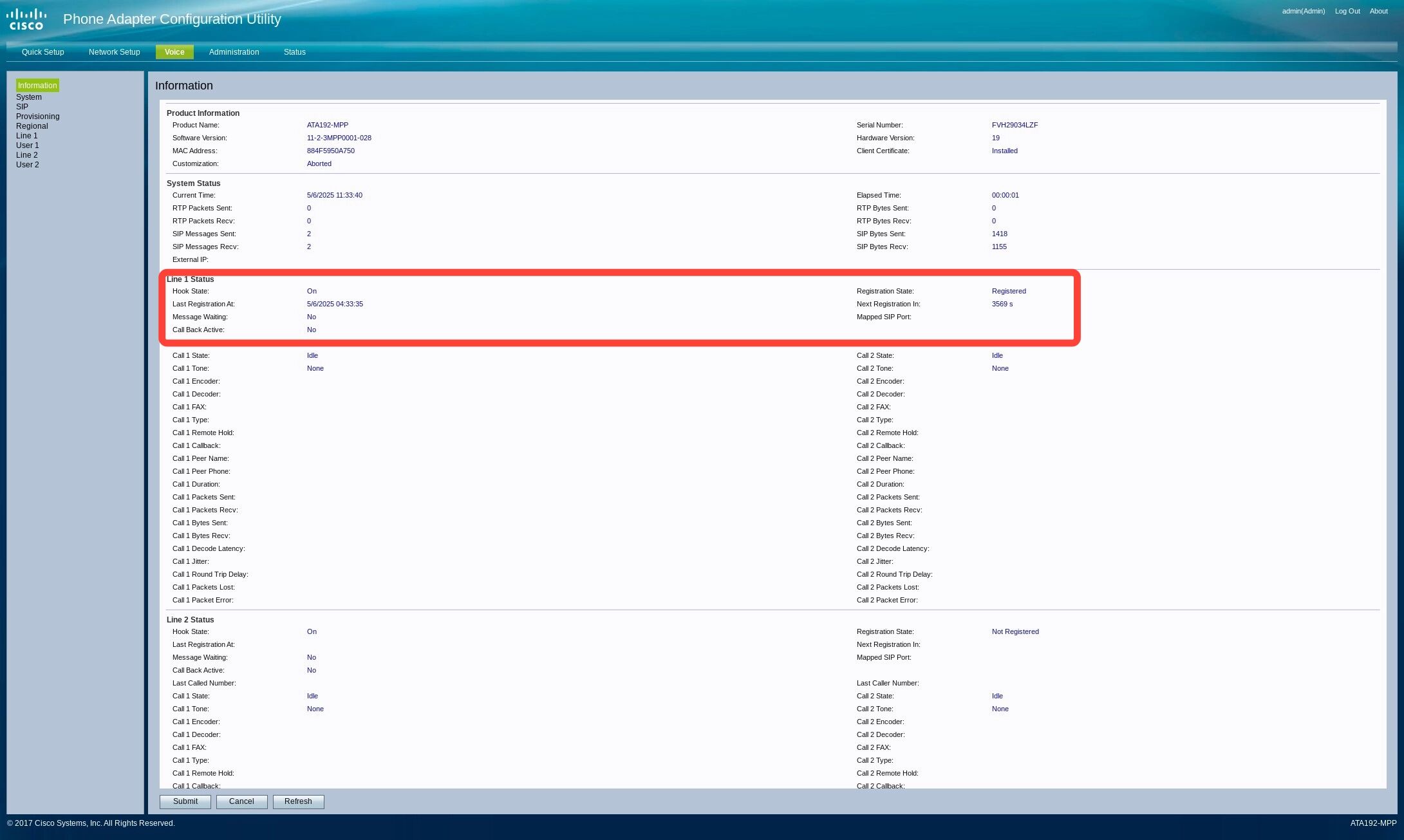

box around registered status

Once the Cisco device is done updating, check the status to see that line 1 is Registered.
